R/C model aircraft plans list.
Item Plan of
Aircraft 		Country
of origin 		Year Description No. of
Sheets		 Motor
Range		 Cost
$ NZ
1-1 Martinsyde F6
"Buzzard"		 G.B. 1918 56" span, robust model biplane 4 60-90
(4 stroke)		 $20
1-2 Nieuport Delage
Sesqui		 France 1922 63" span, complex build, short nose.
New plan being prepared.
Smaller version of model has flown.		 4 60
(4 stroke)		 $20

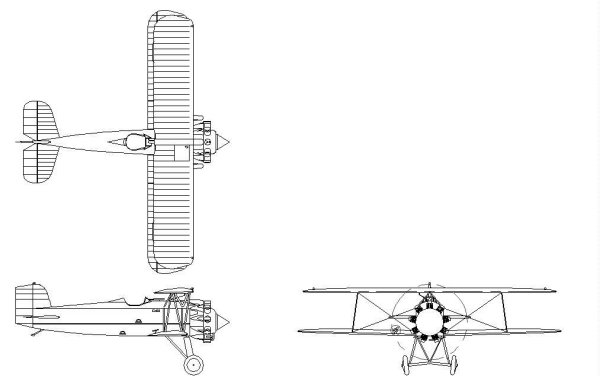

1-3 Avia BH33 Czechoslovakia 1925 65" span, short nose biplane 4 40-50
(4 stroke)		 $20

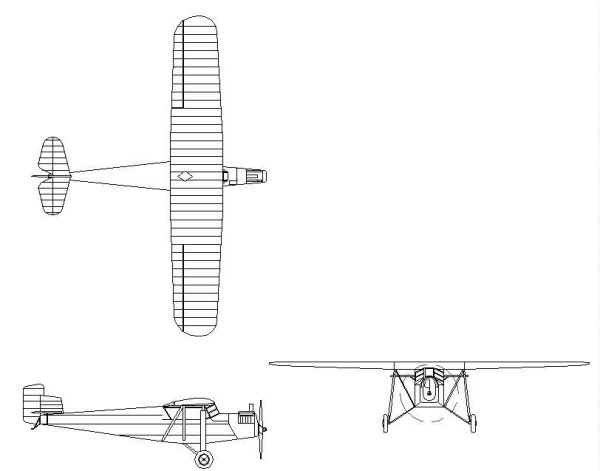

1-4 Desoutter 1 G.B. 1925 59" span, simple design, lightly built 4 40-50
(4 stroke)		 $20

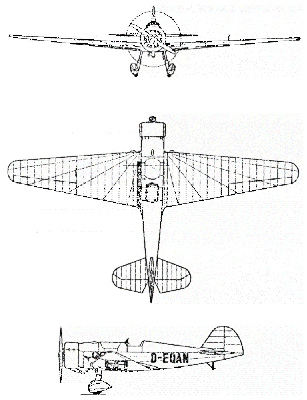

1-5 Messerschmitt M35 Germany 1930 69" span, for experienced builder
new plan ready soon		 4 45-60
(2 stroke)		 $20

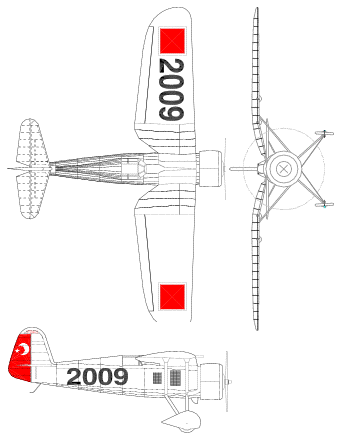

1-6 PZL P24g Poland 1935 68" span, a very rewarding model for an experienced builder
 6 60
(4 stroke)		 $20
1-7 V.E.F. I-16 Lithuania 1939 60" span, new plan being drawn. 4 60
(2 stroke)		 $20
NOTE:-
I can plot the plan for you at 1:1 scale and send it through the post or courier.
This will cost an additional $4.00 per plan sheet plus packing and postage costs.
If you have access to a compatible CAD program and a plotter, you may wish to receive it via email
in the form of a DXF or DWG file which you can then have plotted at a scale to suit yourself.

GO TO TOP OF PAGE



Aircraft 3 View Packs
Item Pack # Description Cost
$ NZ
2-1 3V1 Assorted Civil $15
2-2 3V2 Assorted Military $15
NOTE:-
I can print the 3-view pack for you at 1:1 scale and send it via the post or courier.
This will incur extra for packing and postage.
If you have access to compatible software, you may wish to receive it via email
in the form of a DWG or DXF file which you can then have printed at a scale to suit yourself.

If you are interested in purchasing any of the above then
please email me at ..... cadstuff@xtra.co.nz
and we can arrange all the details.
